SCATS hand-score audit HOLD — awaiting Sabour ≥20% sign-off
Grok ckpt-24 gate. Score against the LEFT (raw) panel only; the right panel is my overlay (blue=exact, orange=approach-only, grey=excluded; labels: det, movement, EX/ap, >target arm). Click any image for full size. Reply verdicts in the Cowork chat.
Checklist
# Sabour audit checklist — hand-score gate (Grok ckpt-24) — ≥20% pass Each site_<id>_v2.1.jpg: LEFT panel = raw sheet (ground truth). RIGHT = same crop with my decisions in the margins (blue=exact, orange=approach-only, grey=excluded; labels per arm: det, movement letter, EX/ap, >target arm). The .txt = tech tables + shadow verdicts. Score against the RAW panel only. Full per-site verdicts: HS23_SCORECARD.json. ## 1. The four uncertains (my calls that need your eyes) - 3940 d7 (Carrington WB): I could not resolve hook side at zoom. Flag excluded it either way. - 5205 d7 (Ryrie EB middle lane): I scored T lean-correct; arrows drawn between lanes. - 2337 d15: left-hook presumed correct (SG9* collision class); verify the hook is on d15's lane. - 556 d10/d11 + 667 d5/d6: dual-turn pairs — check my curl readings (556 both-right; 667 d5 left, d6 right). ## 2. Sanity re-checks (I scored these clean — disagree if the ink says otherwise) - 3384 (the benchmark): 11 exacts; d11 flagged FP; d12 shared T+L. - 3732: d18 tech-minted RIGHT (arrow lane had it wrong); d12 flagged steal; d19 swap = arrow wrong. - 511, 982: standard exacts + flags. ## 3. v7.2 demotion evidence (AUDIT_demotion_crops.jpg) 12 lanes the composite floor demoted from exact->approach_only (sampled from 78/300 sites). Expected: thin markers, dimension lines, hatch bars, or tiny ambiguous straights - NOT clear full-size lane arrows. Any crop showing a REAL unambiguous lane arrow = log it as a v7.2 regression (that would send us back to Grok before HOLD lifts). ## Verdict needed from you - [ ] Uncertains dispositioned (agree/disagree each) - [ ] No wrong-side/wrong-class errors found in the re-checks - [ ] Demotions are fragments/markers (or regressions logged) - [ ] Sign-off to lift HOLD for `minted LIKE 'exact%'` consumption (flags stay non-consumable) Reply in chat; I'll canon the outcome and (if clean) lift HOLD with Grok's final checklist.
1 · Priority packs (uncertains first)

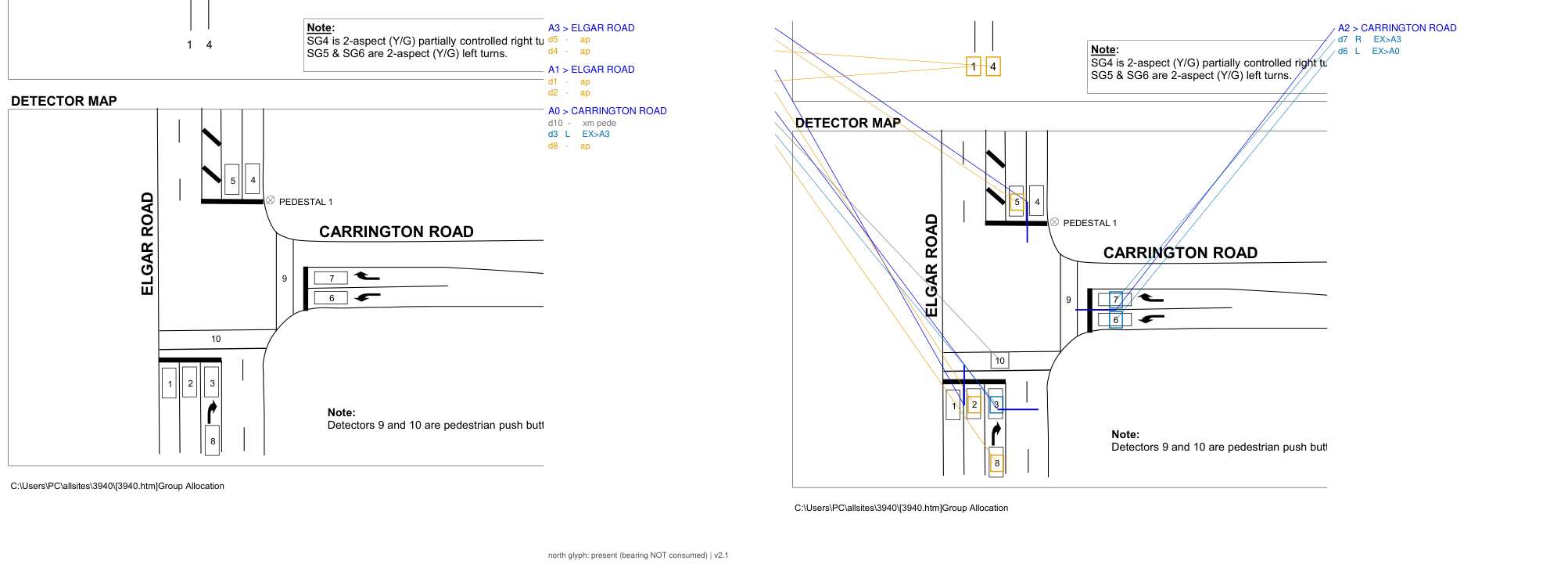

Site 3940
UNCERTAIN: d7 hook side unresolved at zoom — flag excluded it either way
Tech extract + shadow verdicts
== TECH EXTRACT site 3940 (v2.1) == det->SG: 1->SG1, 2->SG1, 3->SG4, 4->SG2, 5->SG2, 7->SG3, 8->SG4 SG4 [right_turn_partial]: SG4 is 2-aspect (Y/G) partially controlled right turn SG5 [left_turn]: SG5 & SG6 are 2-aspect (Y/G) left turns SG6 [left_turn]: SG5 & SG6 are 2-aspect (Y/G) left turns -- mint shadow -- d1 arrow=- SG=1 sem=- ctl=none none none - d2 arrow=- SG=1 sem=- ctl=none none none - d3 arrow=left_turn SG=4 sem=right_turn_partial ctl=partial conflict_LR flag_only - [SWAP] d4 arrow=- SG=2 sem=- ctl=none none none - d5 arrow=- SG=2 sem=- ctl=none none none - d6 arrow=left_turn SG=- sem=- ctl=none arrow_only exact_arrow left_turn d7 arrow=right_turn SG=3 sem=- ctl=none arrow_rt_fp_suspect flag_only - [RT_FP] d8 arrow=- SG=4 sem=right_turn_partial ctl=partial tech_only flag_only - d9 arrow=- SG=- sem=- ctl=none nonmotor none - d10 arrow=- SG=- sem=- ctl=none nonmotor none -
My scorecard entry
{
"strata": [
"swap"
],
"exact_scored": 1,
"exact_correct": 1,
"fp_consumable": 0,
"fn": 0,
"flags": {
"d3_swap": "tech RIGHT correct - ink hook right (3rd tech-right)",
"d7_rt_fp": "UNCERTAIN at zoom - excluded either way; Sabour audit item"
},
"roads_ok": true,
"site_exact": true,
"critical": 0
}Site 5205

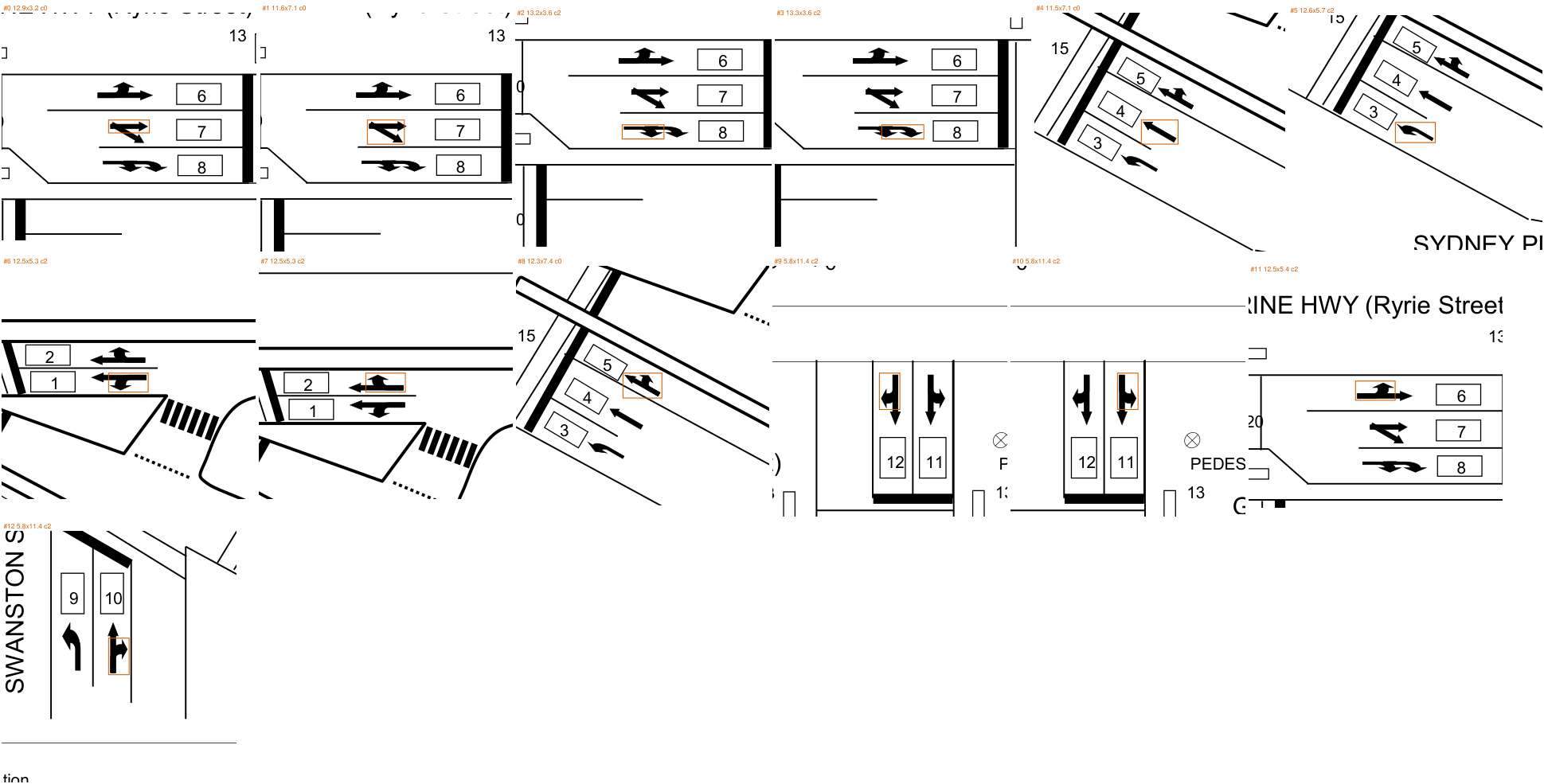

UNCERTAIN: d7 scored T lean-correct; arrows drawn between lanes. Also d8 = semantics-bleed swap (arrow RIGHT correct)
Tech extract + shadow verdicts
== TECH EXTRACT site 5205 (v2.1) == det->SG: 1->SG1, 2->SG1, 3->SG2, 4->SG2, 5->SG2, 6->SG5, 7->SG5, 8->SG5, 10->SG6, 11->SG7, 12->SG7 SG1 [left_turn_partial]: SG1, SG2 & SG5 are 4-aspect (R/Y/G/G arrow) split phase turns SG8 is a 2-aspect (Y/G) partially cont SG2 [left_turn_partial]: SG1, SG2 & SG5 are 4-aspect (R/Y/G/G arrow) split phase turns SG8 is a 2-aspect (Y/G) partially cont SG5 [left_turn_partial]: SG1, SG2 & SG5 are 4-aspect (R/Y/G/G arrow) split phase turns SG8 is a 2-aspect (Y/G) partially cont -- mint shadow -- d1 arrow=left_turn SG=1 sem=left_turn_partial ctl=partial tech_only flag_only - d2 arrow=right_turn SG=1 sem=left_turn_partial ctl=partial tech_only flag_only - d3 arrow=- SG=2 sem=left_turn_partial ctl=partial nonmotor none - d4 arrow=through SG=2 sem=left_turn_partial ctl=partial tech_preferred flag_only - d5 arrow=- SG=2 sem=left_turn_partial ctl=partial tech_only flag_only - d6 arrow=left_turn SG=5 sem=left_turn_partial ctl=partial tech_only flag_only - d7 arrow=through SG=5 sem=left_turn_partial ctl=partial tech_preferred flag_only - d8 arrow=right_turn SG=5 sem=left_turn_partial ctl=partial conflict_LR flag_only - [SWAP] d9 arrow=- SG=- sem=- ctl=none nonmotor none - d10 arrow=right_turn SG=6 sem=- ctl=none arrow_only exact_arrow right_turn d11 arrow=- SG=7 sem=- ctl=none nonmotor none - d12 arrow=- SG=7 sem=- ctl=none none none - d13 arrow=- SG=- sem=- ctl=none nonmotor none - d14 arrow=- SG=- sem=- ctl=none nonmotor none - d15 arrow=- SG=- sem=- ctl=none nonmotor none - d16 arrow=through SG=- sem=- ctl=none nonmotor none - d17 arrow=- SG=- sem=- ctl=none nonmotor none - d18 arrow=- SG=- sem=- ctl=none nonmotor none - d19 arrow=- SG=- sem=- ctl=none nonmotor none - d20 arrow=- SG=- sem=- ctl=none nonmotor none -
My scorecard entry
{
"strata": [
"swap"
],
"exact_scored": 3,
"exact_correct": 3,
"fp_consumable": 0,
"fn": 1,
"flags": {
"d8_swap": "arrow RIGHT correct; SEMANTICS-BLEED defect (split-phase sentence over-capture misread SG5 as left)",
"d7_uncertain": "lean-correct T; audit item"
},
"roads_ok": true,
"site_exact": true,
"critical": 0,
"notes": "5-leg, all 5 roads bound correctly incl recovered RYRIE"
}Site 2337

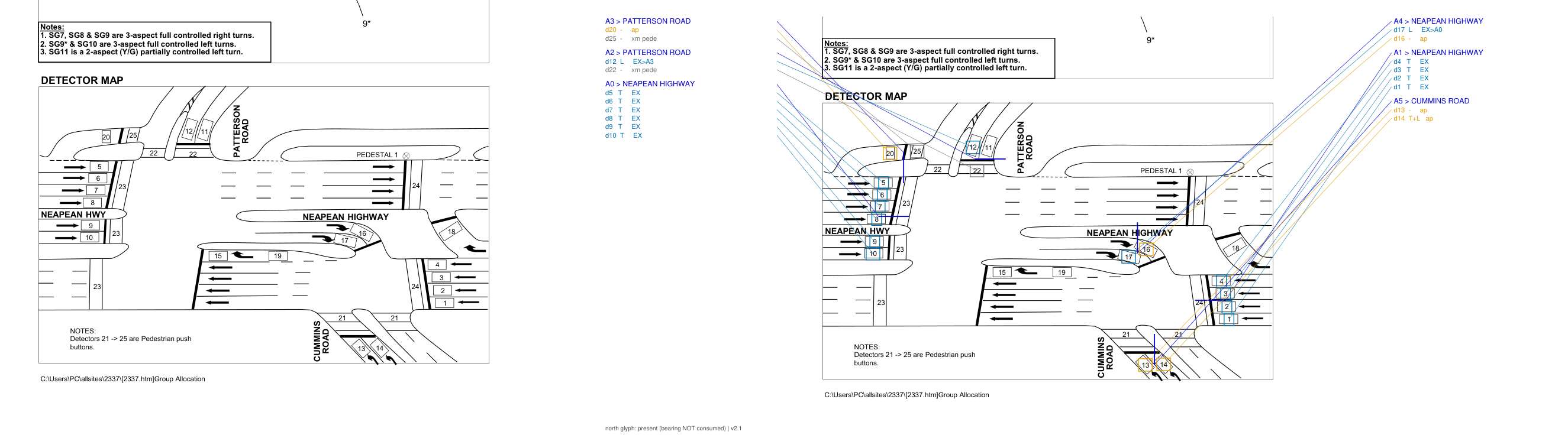

UNCERTAIN: d15 left-hook presumed correct (SG9* collision) — verify hook is on d15 lane
Tech extract + shadow verdicts
== TECH EXTRACT site 2337 (v2.1) == det->SG: 1->SG1, 2->SG1, 3->SG1, 4->SG1, 5->SG3, 6->SG3, 7->SG3, 8->SG3, 9->SG5, 10->SG5, 11->SG6, 12->SG6, 13->SG9, 14->SG9, 15->SG8, 16->SG9, 17->SG9, 18->SG7, 19->SG8, 20->SG10 SG7 [right_turn]: SG7, SG8 & SG9 are 3-aspect full controlled right turns SG8 [right_turn]: SG7, SG8 & SG9 are 3-aspect full controlled right turns SG9 [right_turn]: SG7, SG8 & SG9 are 3-aspect full controlled right turns SG9* [left_turn]: SG9* & SG10 are 3-aspect full controlled left turns SG10 [left_turn]: SG9* & SG10 are 3-aspect full controlled left turns SG11 [left_turn_partial]: SG11 is a 2-aspect (Y/G) partially controlled left turn -- mint shadow -- d1 arrow=through SG=1 sem=- ctl=none arrow_only exact_arrow through d2 arrow=through SG=1 sem=- ctl=none arrow_only exact_arrow through d3 arrow=through SG=1 sem=- ctl=none arrow_only exact_arrow through d4 arrow=through SG=1 sem=- ctl=none arrow_only exact_arrow through d5 arrow=through SG=3 sem=- ctl=none arrow_only exact_arrow through d6 arrow=through SG=3 sem=- ctl=none arrow_only exact_arrow through d7 arrow=through SG=3 sem=- ctl=none arrow_only exact_arrow through d8 arrow=through SG=3 sem=- ctl=none arrow_only exact_arrow through d9 arrow=through SG=5 sem=- ctl=none arrow_only exact_arrow through d10 arrow=through SG=5 sem=- ctl=none arrow_only exact_arrow through d11 arrow=- SG=6 sem=- ctl=none nonmotor none - d12 arrow=left_turn SG=6 sem=- ctl=none arrow_only exact_arrow left_turn d13 arrow=- SG=9 sem=right_turn ctl=unspecified tech_only flag_only - d14 arrow=left_turn SG=9 sem=right_turn ctl=unspecified tech_only flag_only - d15 arrow=- SG=8 sem=right_turn ctl=unspecified nonmotor none - d16 arrow=- SG=9 sem=right_turn ctl=unspecified tech_only flag_only - d17 arrow=left_turn SG=9 sem=right_turn ctl=unspecified conflict_LR flag_only - [SWAP] d18 arrow=- SG=7 sem=right_turn ctl=unspecified nonmotor none - d19 arrow=- SG=8 sem=right_turn ctl=unspecified nonmotor none - d20 arrow=- SG=10 sem=left_turn ctl=unspecified tech_only flag_only - d21 arrow=- SG=- sem=- ctl=none nonmotor none - d22 arrow=- SG=- sem=- ctl=none nonmotor none - d23 arrow=- SG=- sem=- ctl=none nonmotor none - d24 arrow=- SG=- sem=- ctl=none nonmotor none - d25 arrow=- SG=- sem=- ctl=none nonmotor none -
My scorecard entry
{
"strata": [
"swap"
],
"exact_scored": 12,
"exact_correct": 12,
"fp_consumable": 0,
"fn": 1,
"flags": {
"d15_swap": "presumed arrow-left correct (SG9/SG9* collision); ink left-hook"
},
"roads_ok": true,
"site_exact": true,
"critical": 0

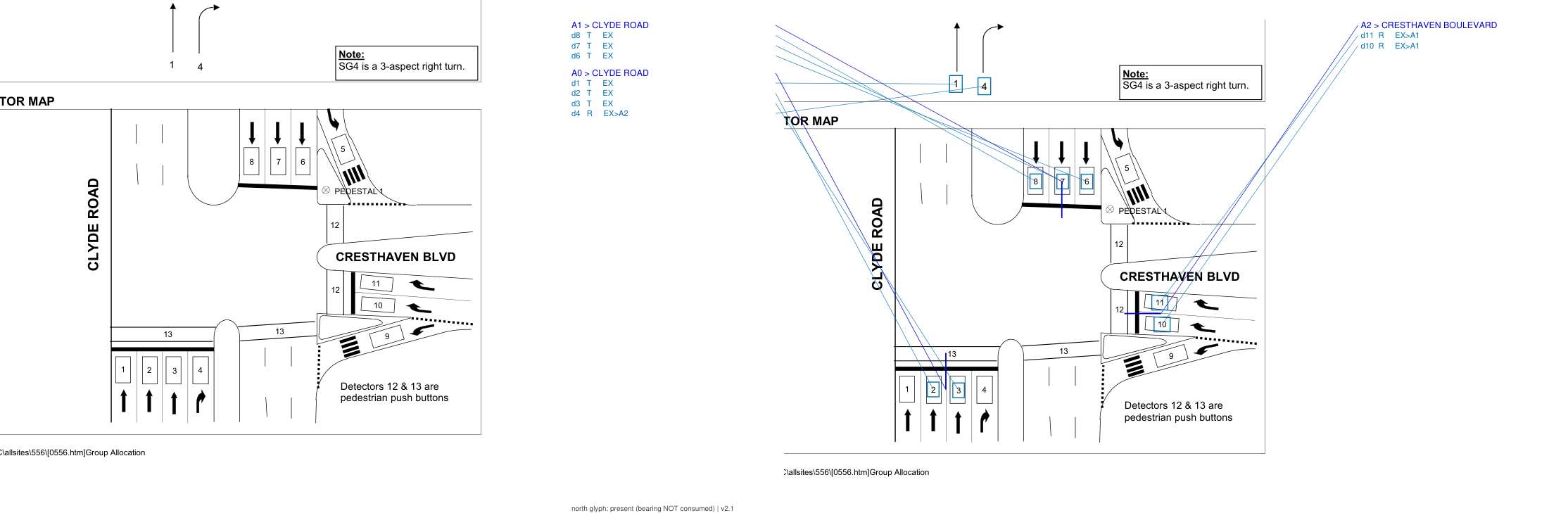

}Site 556
PAIR: d10/d11 — I read BOTH as true rights withheld (up-left curls = right from WB)
Tech extract + shadow verdicts
== TECH EXTRACT site 556 (v2.1) == det->SG: 1->SG1, 2->SG1, 3->SG1, 4->SG4, 6->SG2, 7->SG2, 8->SG2, 9->SG3, 10->SG3, 11->SG3 SG4 [right_turn]: SG4 is a 3-aspect right turn -- mint shadow -- d1 arrow=through SG=1 sem=- ctl=none arrow_only exact_arrow through d2 arrow=through SG=1 sem=- ctl=none arrow_only exact_arrow through d3 arrow=through SG=1 sem=- ctl=none arrow_only exact_arrow through d4 arrow=right_turn SG=4 sem=right_turn ctl=unspecified agree exact_both right_turn d5 arrow=- SG=- sem=- ctl=none nonmotor none - d6 arrow=through SG=2 sem=- ctl=none arrow_only exact_arrow through d7 arrow=through SG=2 sem=- ctl=none arrow_only exact_arrow through d8 arrow=through SG=2 sem=- ctl=none arrow_only exact_arrow through d9 arrow=- SG=3 sem=- ctl=none nonmotor none - d10 arrow=right_turn SG=3 sem=- ctl=none arrow_rt_fp_suspect flag_only - [RT_FP] d11 arrow=right_turn SG=3 sem=- ctl=none arrow_rt_fp_suspect flag_only - [RT_FP] d12 arrow=- SG=- sem=- ctl=none nonmotor none - d13 arrow=- SG=- sem=- ctl=none nonmotor none -
My scorecard entry
{
"strata": [
"rt_fp_multi"
],
"exact_scored": 7,
"exact_correct": 7,
"fp_consumable": 0,
"fn": 2,
"flags": {
"d10_d11_rt_fp": "BOTH true rights withheld (up-left curls = right from WB)"
},
"roads_ok": true,
"site_exact": true,
"critical": 0

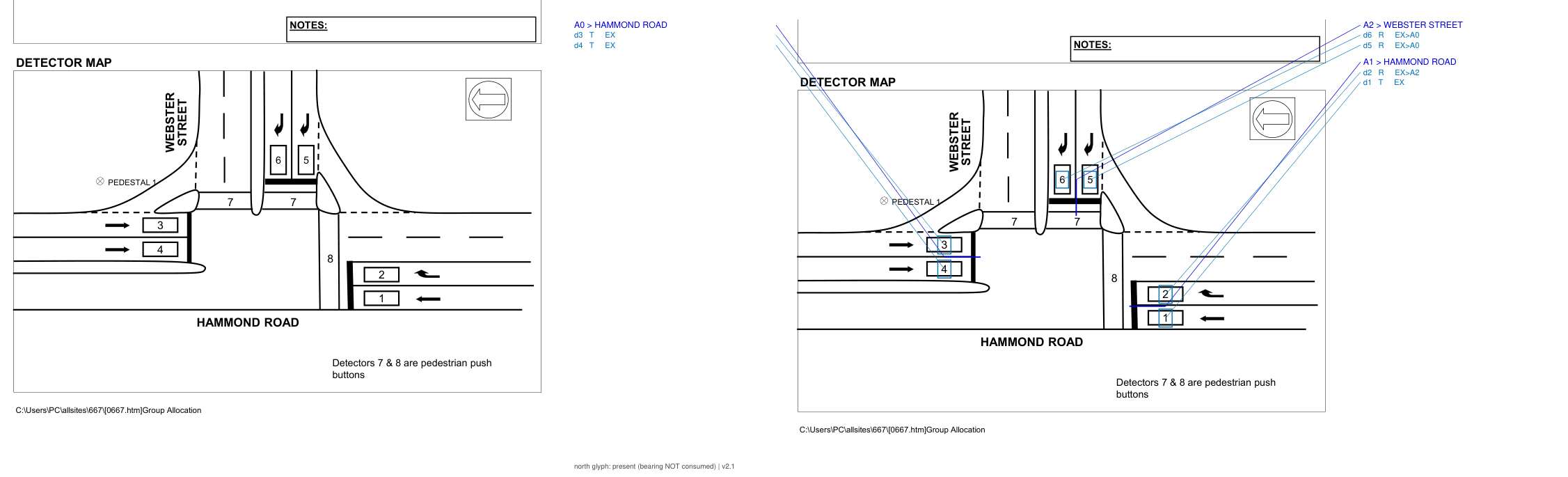

}Site 667
PAIR: d5 wrong-side TP (ink LEFT), d6 true right withheld
Tech extract + shadow verdicts
== TECH EXTRACT site 667 (v2.1) == det->SG: 1->SG1, 2->SG4, 3->SG2, 4->SG2, 5->SG3, 6->SG3 SG4 [right_turn_full]: SG4 is a 3-aspect (R/Y/G) fully controlled right turn -- mint shadow -- d1 arrow=through SG=1 sem=- ctl=none arrow_only exact_arrow through d2 arrow=right_turn SG=4 sem=right_turn_full ctl=full agree exact_both right_turn d3 arrow=through SG=2 sem=- ctl=none arrow_only exact_arrow through d4 arrow=through SG=2 sem=- ctl=none arrow_only exact_arrow through d5 arrow=right_turn SG=3 sem=- ctl=none arrow_rt_fp_suspect flag_only - [RT_FP] d6 arrow=right_turn SG=3 sem=- ctl=none arrow_rt_fp_suspect flag_only - [RT_FP] d7 arrow=- SG=- sem=- ctl=none nonmotor none - d8 arrow=- SG=- sem=- ctl=none nonmotor none -
My scorecard entry
{
"strata": [
"rt_fp_multi"
],
"exact_scored": 4,
"exact_correct": 4,
"fp_consumable": 0,
"fn": 1,
"flags": {
"d5_rt_fp": "TP - wrong-side (ink LEFT)",
"d6_rt_fp": "true right withheld"
},
"roads_ok": true,
"site_exact": true,
"critical": 0
}Site 3384

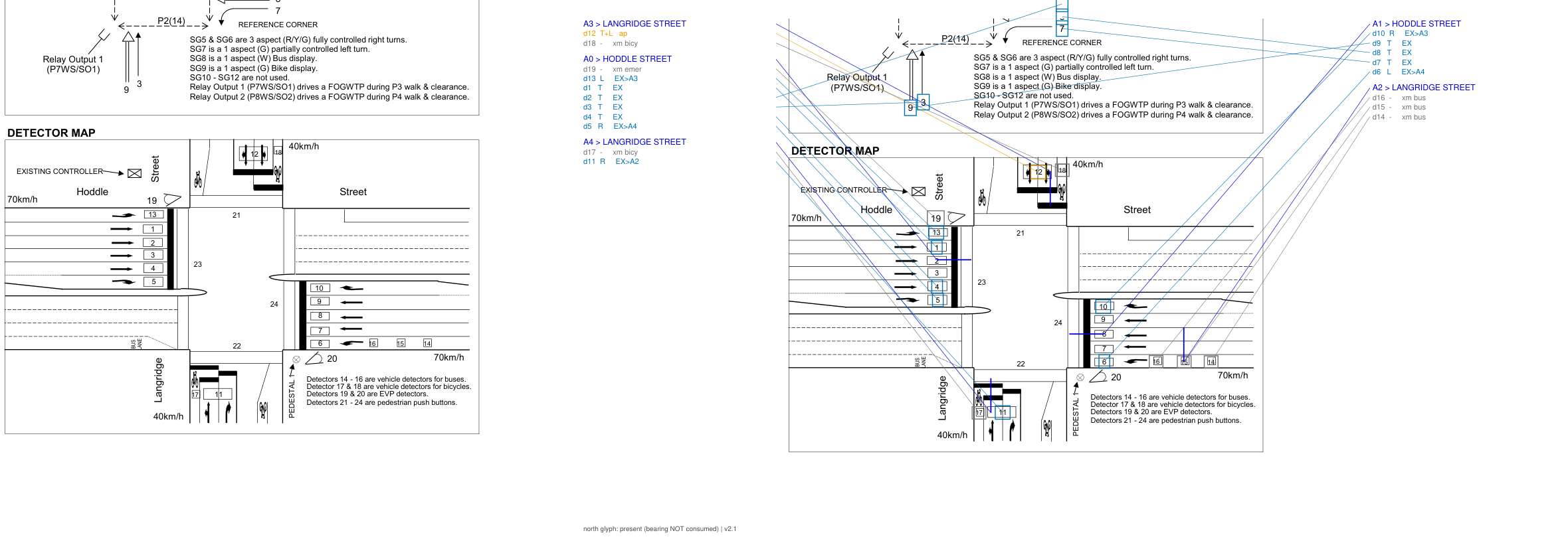

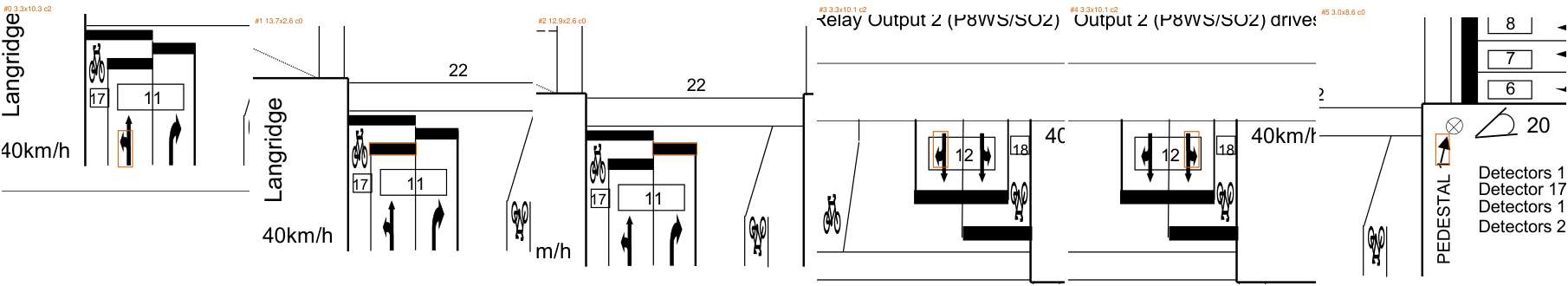

RECHECK benchmark: 11 exacts clean; d11 flagged FP; d12 shared T+L
Tech extract + shadow verdicts
== TECH EXTRACT site 3384 (v2.1) == det->SG: 1->SG1, 2->SG1, 3->SG1, 4->SG1, 5->SG5, 7->SG2, 8->SG2, 9->SG2, 10->SG6, 11->SG3, 12->SG4 SG5 [right_turn_full]: SG5 & SG6 are 3 aspect (R/Y/G) fully controlled right turns SG6 [right_turn_full]: SG5 & SG6 are 3 aspect (R/Y/G) fully controlled right turns SG7 [left_turn_partial]: SG7 is a 1 aspect (G) partially controlled left turn SG8 [bus]: SG8 is a 1 aspect (W) Bus display SG9 [bicycle]: SG9 is a 1 aspect (G) Bike display SG10 [not_used]: SG10 - SG12 are not used SG11 [not_used]: SG10 - SG12 are not used SG12 [not_used]: SG10 - SG12 are not used -- mint shadow -- d1 arrow=through SG=1 sem=- ctl=none arrow_only exact_arrow through d2 arrow=through SG=1 sem=- ctl=none arrow_only exact_arrow through d3 arrow=through SG=1 sem=- ctl=none arrow_only exact_arrow through d4 arrow=through SG=1 sem=- ctl=none arrow_only exact_arrow through d5 arrow=right_turn SG=5 sem=right_turn_full ctl=full agree exact_both right_turn d6 arrow=left_turn SG=- sem=- ctl=none arrow_only exact_arrow left_turn d7 arrow=through SG=2 sem=- ctl=none arrow_only exact_arrow through d8 arrow=through SG=2 sem=- ctl=none arrow_only exact_arrow through d9 arrow=through SG=2 sem=- ctl=none arrow_only exact_arrow through d10 arrow=right_turn SG=6 sem=right_turn_full ctl=full agree exact_both right_turn d11 arrow=right_turn SG=3 sem=- ctl=none arrow_rt_fp_suspect flag_only - [RT_FP] d12 arrow=left_turn SG=4 sem=- ctl=none none none - d13 arrow=left_turn SG=- sem=- ctl=none arrow_only exact_arrow left_turn d14 arrow=- SG=- sem=- ctl=none nonmotor none - d15 arrow=- SG=- sem=- ctl=none nonmotor none - d16 arrow=- SG=- sem=- ctl=none nonmotor none - d17 arrow=- SG=- sem=- ctl=none nonmotor none - d18 arrow=- SG=- sem=- ctl=none nonmotor none - d19 arrow=- SG=- sem=- ctl=none nonmotor none - d20 arrow=- SG=- sem=- ctl=none nonmotor none - d21 arrow=- SG=- sem=- ctl=none nonmotor none - d22 arrow=- SG=- sem=- ctl=none nonmotor none - d23 arrow=- SG=- sem=- ctl=none nonmotor none - d24 arrow=- SG=- sem=- ctl=none nonmotor none -
My scorecard entry
{
"strata": [
"mandatory_rescore"
],
"exact_scored": 11,
"exact_correct": 11,
"fp_consumable": 0,
"fn": 0,
"flags": {
"d11_rt_fp": "TP_filter (wide-box class, lane-layer FP, not consumed)",
"d12_shared": "correct v7.1 demotion, ink=T+L wide box"
},
"roads_ok": true,
"site_exact": true,
"critical": 0,
"notes": "11/11 letter+target; A2 bus row road wrong but flagged nonmotor"
}Site 3732
RECHECK: d18 tech-minted RIGHT (ink-correct); d12 steal caught; d19 swap=arrow wrong
Tech extract + shadow verdicts
== TECH EXTRACT site 3732 (v2.1) == det->SG: 1->SG1, 2->SG1, 3->SG5, 4->SG2, 5->SG2, 6->SG2, 7->SG6, 8->SG3, 9->SG3, 10->SG9, 11->SG4, 12->SG4, 17->SG1, 18->SG10, 19->SG9 SG5 [right_turn_full]: SG5, SG6, SG9 and SG10 are 3-aspect (R/Y/G) fully controlled right turns SG6 [right_turn_full]: SG5, SG6, SG9 and SG10 are 3-aspect (R/Y/G) fully controlled right turns SG7 [tram]: SG7 and SG8 are 3-aspect (R/Y/G) tram displays SG8 [tram]: SG7 and SG8 are 3-aspect (R/Y/G) tram displays SG9 [right_turn_full]: SG5, SG6, SG9 and SG10 are 3-aspect (R/Y/G) fully controlled right turns SG10 [right_turn_full]: SG5, SG6, SG9 and SG10 are 3-aspect (R/Y/G) fully controlled right turns SG11 [left_turn_partial]: SG11 is a 2-aspect (Y/G) partially controlled left turn -- mint shadow -- d1 arrow=through SG=1 sem=- ctl=none arrow_only exact_arrow through d2 arrow=through SG=1 sem=- ctl=none arrow_only exact_arrow through d3 arrow=right_turn SG=5 sem=right_turn_full ctl=full agree exact_both right_turn d4 arrow=- SG=2 sem=- ctl=none none none - d5 arrow=through SG=2 sem=- ctl=none arrow_only exact_arrow through d6 arrow=- SG=2 sem=- ctl=none none none - d7 arrow=right_turn SG=6 sem=right_turn_full ctl=full agree exact_both right_turn d8 arrow=- SG=3 sem=- ctl=none none none - d9 arrow=through SG=3 sem=- ctl=none arrow_only exact_arrow through d10 arrow=through SG=9 sem=right_turn_full ctl=full tech_preferred flag_only - d11 arrow=through SG=4 sem=- ctl=none arrow_only exact_arrow through d12 arrow=right_turn SG=4 sem=- ctl=none arrow_rt_fp_suspect flag_only - [RT_FP] d14 arrow=- SG=- sem=- ctl=none nonmotor none - d16 arrow=- SG=- sem=- ctl=none nonmotor none - d17 arrow=through SG=1 sem=- ctl=none arrow_only exact_arrow through d18 arrow=- SG=10 sem=right_turn_full ctl=full tech_only exact_tech right_turn d19 arrow=left_turn SG=9 sem=right_turn_full ctl=full conflict_LR flag_only - [SWAP] d20 arrow=left_turn SG=- sem=- ctl=none nonmotor none - d21 arrow=- SG=- sem=- ctl=none nonmotor none - d22 arrow=- SG=- sem=- ctl=none nonmotor none - d23 arrow=- SG=- sem=- ctl=none nonmotor none - d24 arrow=- SG=- sem=- ctl=none nonmotor none -
My scorecard entry
{
"strata": [
"swap",
"rt_fp",
"tech_preferred",
"road_mismatch"
],
"exact_scored": 10,
"exact_correct": 10,
"fp_consumable": 0,
"fn": 3,
"flags": {
"d12_rt_fp": "TRUE FP confirmed by zoom: hook belongs to d18 lane (window steal)",
"d18_exact_tech": "CORRECT right mint - ink hook on d18 lane",
"d10_tech_preferred": "TRUE conflict: ink=hook right, arrow read through",
"d19_swap": "tech RIGHT correct, arrow side wrong (hook sign error)"
},
"roads_ok": true,
"site_exact": true,
"critical": 0,
"notes": "swap class heterogeneous: 2042=arrow-right(starred collision), 3732=tech-right(hook sign)"
}Site 511
RECHECK: 9 exacts clean; d9 wrong-side TP; d10 true right withheld
Tech extract + shadow verdicts
== TECH EXTRACT site 511 (v2.1) == det->SG: 1->SG1, 2->SG1, 3->SG1, 4->SG4, 5->SG2, 6->SG2, 7->SG2, 8->SG2, 9->SG3, 10->SG3, 16->SG4 SG3* [left_turn_partial]: SG3* is a 2-apect (Y/G) partially controlled left turn SG4 [right_turn_full]: SG4 is a 3-aspect (R/Y/G) fully controlled right turn -- mint shadow -- d1 arrow=through SG=1 sem=- ctl=none arrow_only exact_arrow through d2 arrow=through SG=1 sem=- ctl=none arrow_only exact_arrow through d3 arrow=through SG=1 sem=- ctl=none arrow_only exact_arrow through d4 arrow=right_turn SG=4 sem=right_turn_full ctl=full agree exact_both right_turn d5 arrow=left_turn SG=2 sem=- ctl=none arrow_only exact_arrow left_turn d6 arrow=through SG=2 sem=- ctl=none arrow_only exact_arrow through d7 arrow=through SG=2 sem=- ctl=none arrow_only exact_arrow through d8 arrow=through SG=2 sem=- ctl=none arrow_only exact_arrow through d9 arrow=right_turn SG=3 sem=- ctl=none arrow_rt_fp_suspect flag_only - [RT_FP] d10 arrow=right_turn SG=3 sem=- ctl=none arrow_rt_fp_suspect flag_only - [RT_FP] d11 arrow=- SG=- sem=- ctl=none nonmotor none - d12 arrow=- SG=- sem=- ctl=none nonmotor none - d13 arrow=- SG=- sem=- ctl=none nonmotor none - d14 arrow=- SG=- sem=- ctl=none nonmotor none - d15 arrow=- SG=- sem=- ctl=none nonmotor none - d16 arrow=right_turn SG=4 sem=right_turn_full ctl=full agree exact_both right_turn d17 arrow=left_turn SG=- sem=- ctl=none none none -
My scorecard entry
{
"strata": [
"rt_fp_multi"
],
"exact_scored": 9,
"exact_correct": 9,
"fp_consumable": 0,
"fn": 1,
"flags": {
"d9_rt_fp": "TP - wrong-side arrow (ink LEFT, read right)",
"d10_rt_fp": "true right withheld"
},
"roads_ok": true,
"site_exact": true,
"critical": 0
}Site 982
RECHECK: 5 exacts clean; d8 U-turn class-mismatch; d9 conservative hold
Tech extract + shadow verdicts
== TECH EXTRACT site 982 (v2.1) == det->SG: 1->SG1, 2->SG1, 3->SG4, 6->SG2, 7->SG2, 8->SG5, 9->SG3, 10->SG3, 11->SG3 SG3 [right_turn]: SG3 is a 3-aspect [(R/Y) circle, (G) right turn arrow] display SG4 [right_turn_full]: SG4 is a 3-aspect (R/Y/G) fully controlled right turn SG5 [other]: SG5 is a 3-aspect (R/Y/G) fully controlled U-turn display SG6 [bus]: SG6 and SG9 are single-aspect white 'B' (bus) displays SG9 [bus]: SG6 and SG9 are single-aspect white 'B' (bus) displays -- mint shadow -- d1 arrow=through SG=1 sem=- ctl=none arrow_only exact_arrow through d2 arrow=through SG=1 sem=- ctl=none arrow_only exact_arrow through d3 arrow=right_turn SG=4 sem=right_turn_full ctl=full agree exact_both right_turn d4 arrow=- SG=- sem=- ctl=none nonmotor none - d5 arrow=- SG=- sem=- ctl=none nonmotor none - d6 arrow=through SG=2 sem=- ctl=none arrow_only exact_arrow through d7 arrow=through SG=2 sem=- ctl=none arrow_only exact_arrow through d8 arrow=right_turn SG=5 sem=other ctl=none arrow_rt_fp_suspect flag_only - [RT_FP] d9 arrow=through SG=3 sem=right_turn ctl=unspecified tech_preferred flag_only - d10 arrow=right_turn SG=3 sem=right_turn ctl=unspecified agree exact_both right_turn d11 arrow=right_turn SG=3 sem=right_turn ctl=unspecified agree exact_both right_turn d12 arrow=- SG=- sem=- ctl=none nonmotor none - d13 arrow=- SG=- sem=- ctl=none nonmotor none -
My scorecard entry
{
"strata": [
"tech_preferred"
],
"exact_scored": 5,
"exact_correct": 5,
"fp_consumable": 0,
"fn": 1,
"flags": {
"d8_rt_fp": "TP class-mismatch: SG5 fully controlled U-TURN (2nd U-turn case)",
"d9_tech_preferred": "circle+right-arrow combined display; conservative hold ok"
},
"roads_ok": true,
"site_exact": true,
"critical": 0
}2 · v7.2 demotion evidence

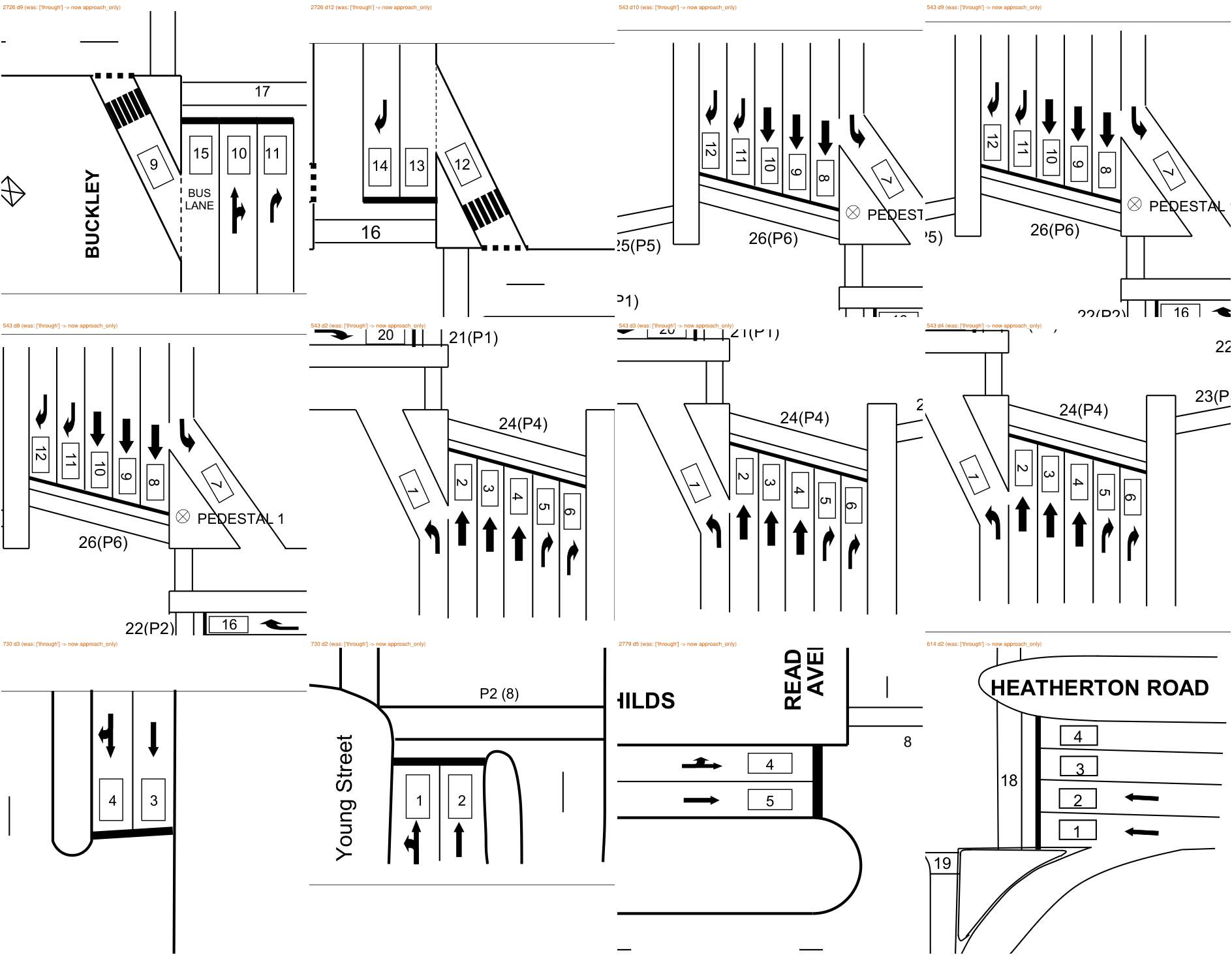

12 lanes demoted exact→approach_only by the composite floor (sample of 78/300 sites). Expected: thin markers / hatch bars / dimension lines. Any REAL full lane arrow here = log a regression.
3 · Appendix — all 42 rendered packs
1094 1165 1266 151 2042 2166 2337 256 275 2849 2982 3002 3119 3151 3195 3384 339 3691 3727 3732 377 3940 4199 4268 4272 4290 4647 4810 505 511 5205 555 556 572 6269 667 6689 6702 735 845 869 982

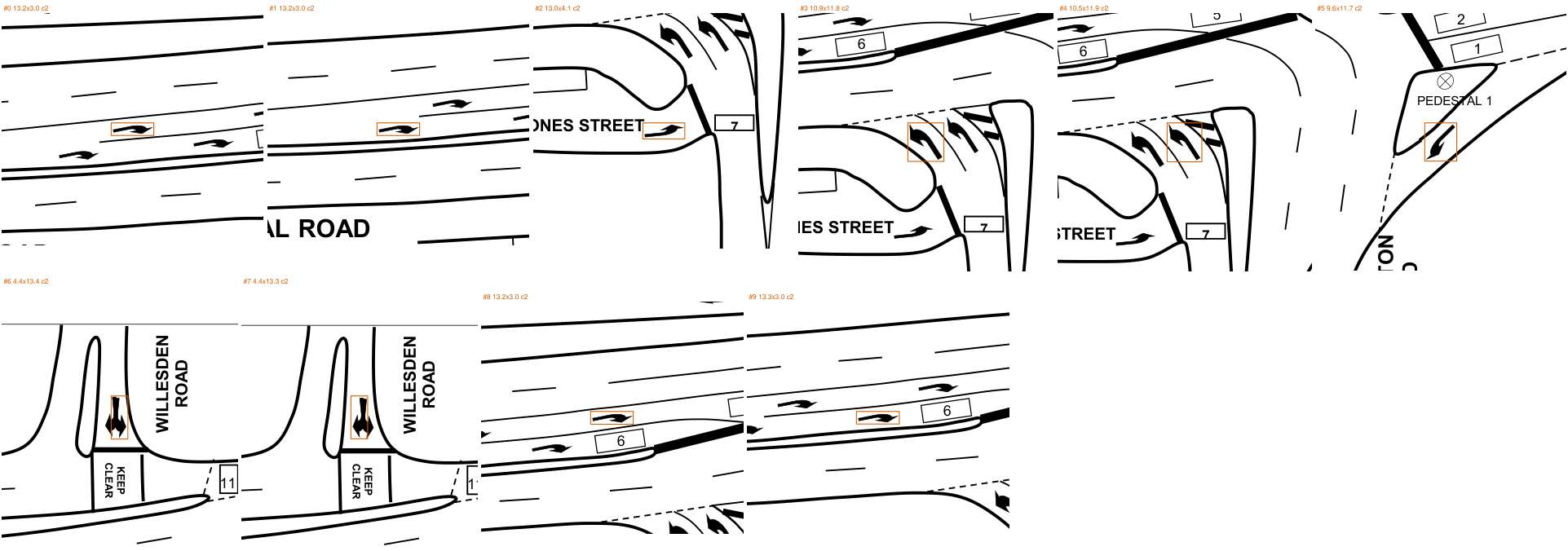

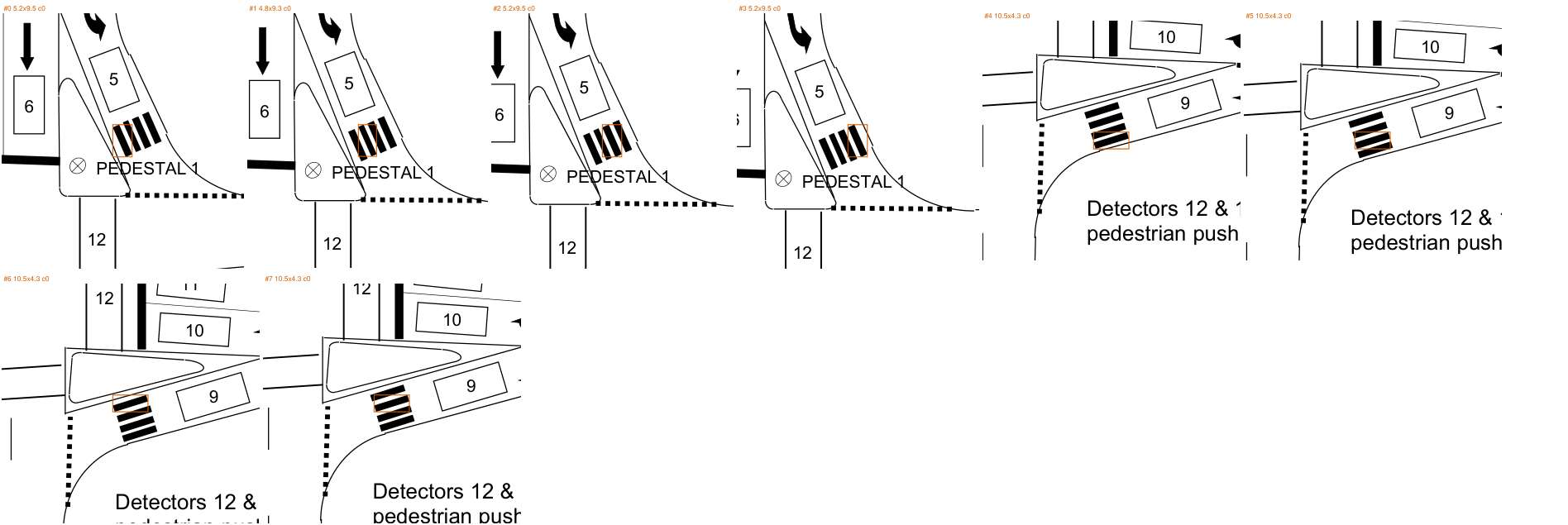

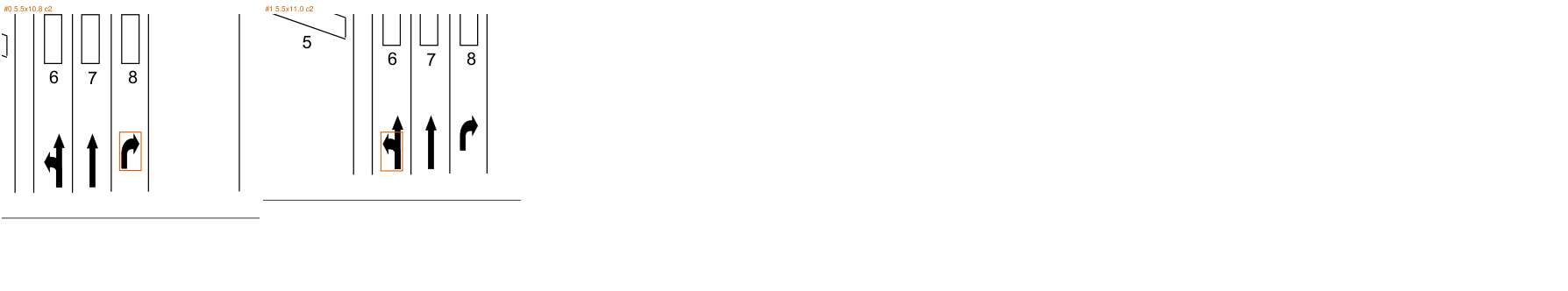

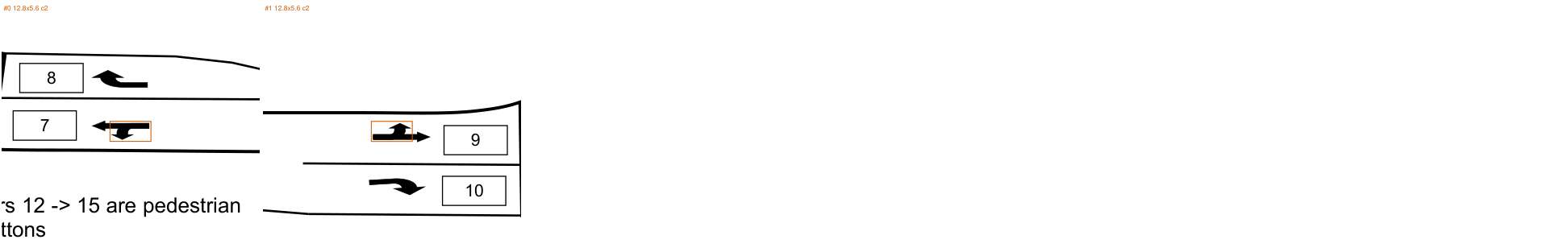

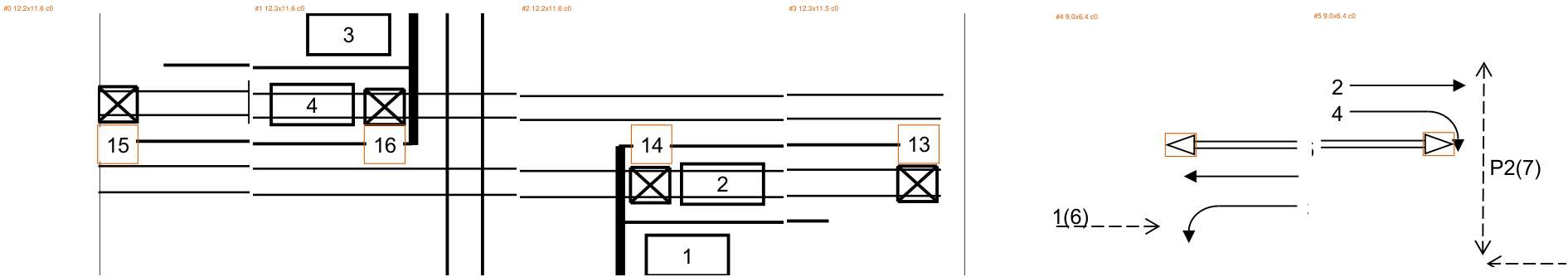

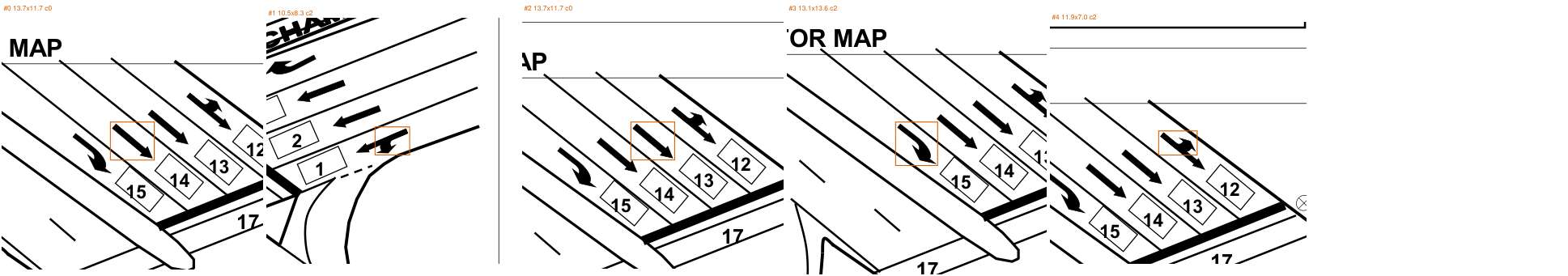

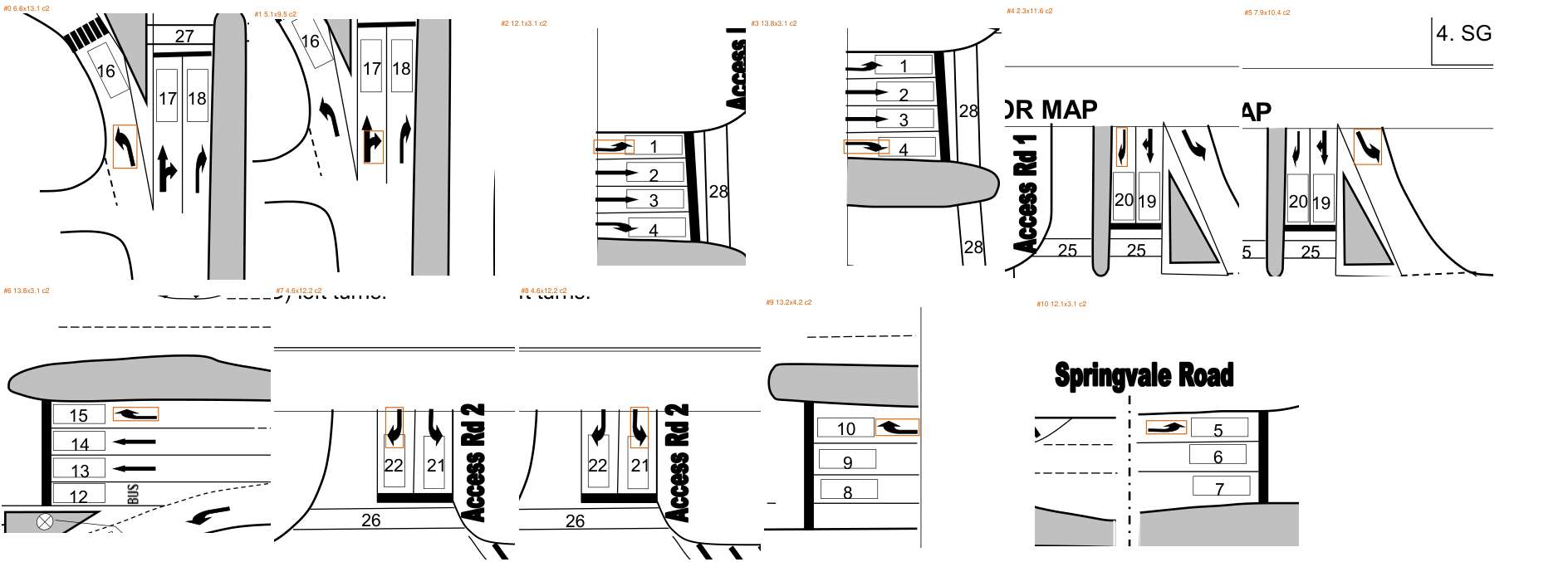

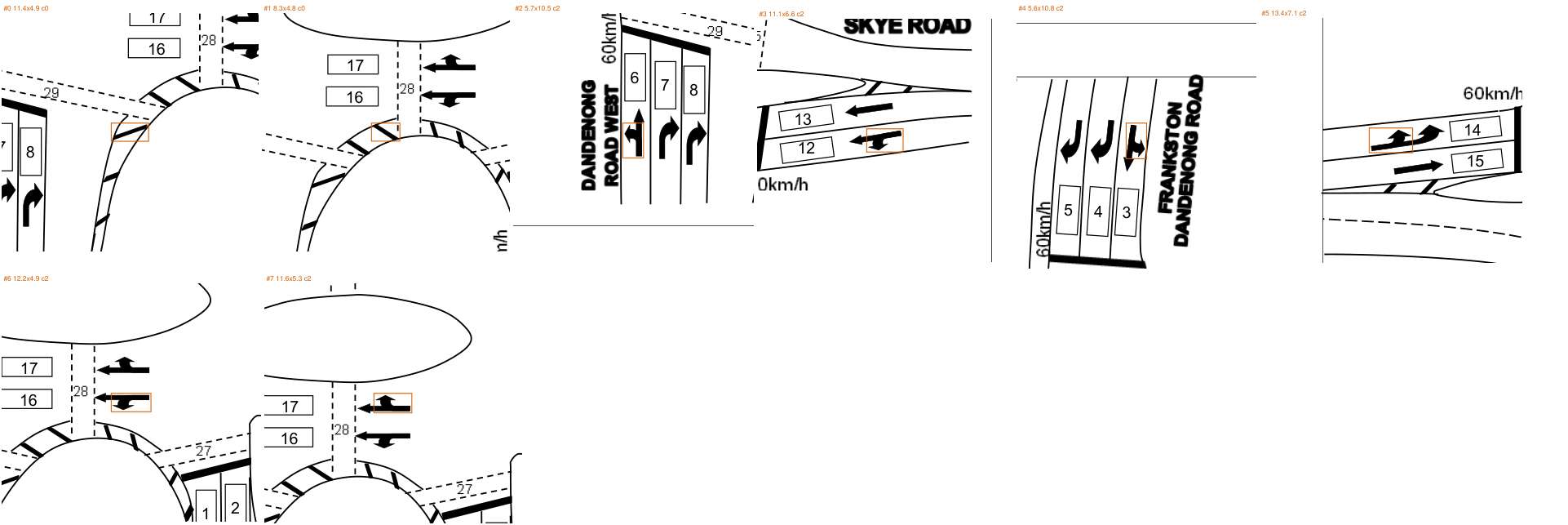

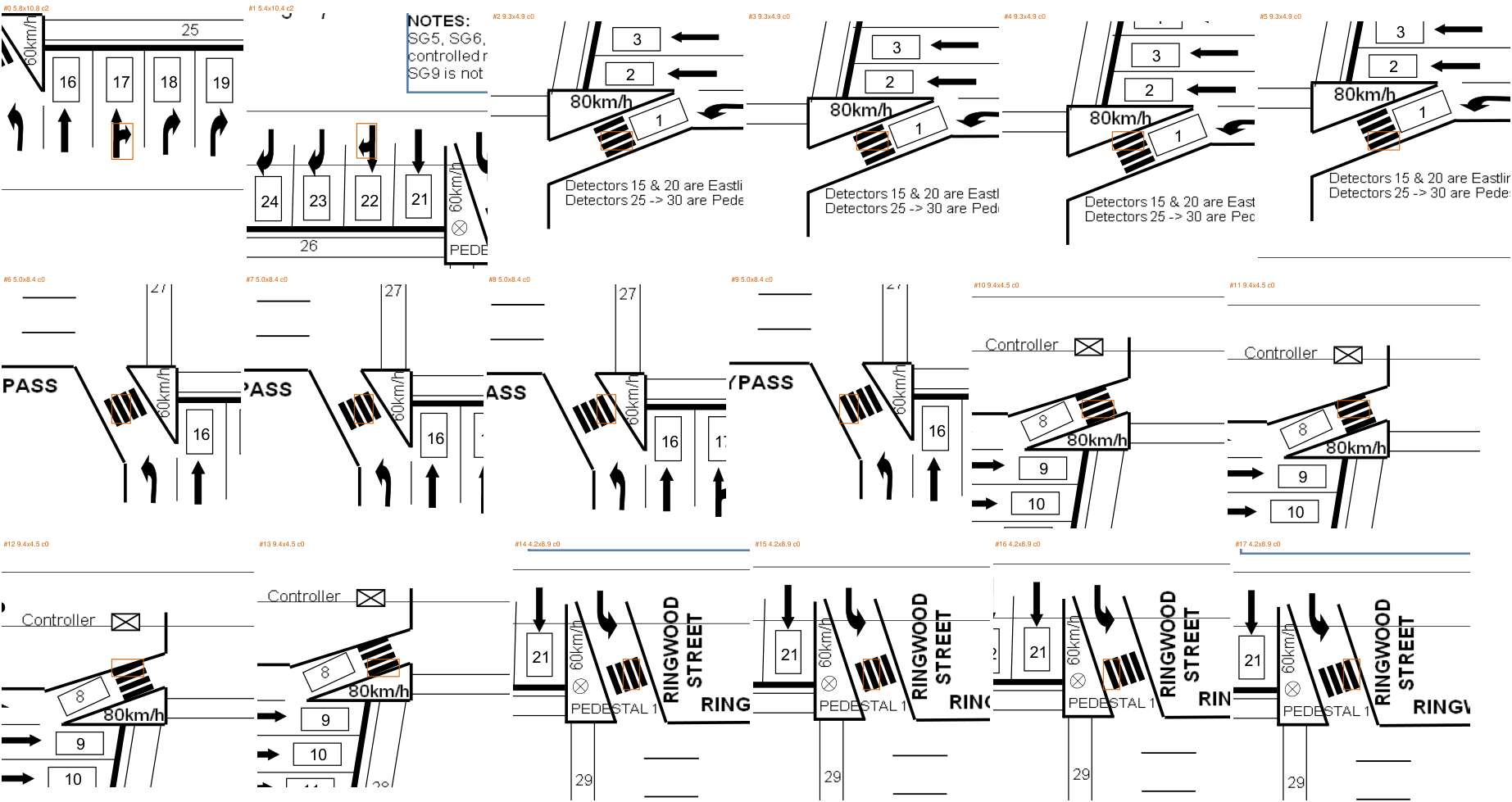

4 · Appendix — arrow-floor tile grids
floor_1094 floor_1165 floor_1266 floor_2166 floor_2337 floor_256 floor_275 floor_2849 floor_2982 floor_3119 floor_3151 floor_3195 floor_3384 floor_339 floor_3691 floor_3727 floor_3732 floor_377 floor_4199 floor_4268 floor_4272 floor_4290 floor_4647 floor_4810 floor_5205 floor_556 floor_6269 floor_6689 floor_6702 floor_735 floor_869
5 · Full scorecard
HS23_SCORECARD.json
{
"protocol": "ckpt19+ckpt23",
"renderer": "overlay_v2.1",
"scorer": "fable",
"sites": {
"3384": {
"strata": [
"mandatory_rescore"
],
"exact_scored": 11,
"exact_correct": 11,
"fp_consumable": 0,
"fn": 0,
"flags": {
"d11_rt_fp": "TP_filter (wide-box class, lane-layer FP, not consumed)",
"d12_shared": "correct v7.1 demotion, ink=T+L wide box"
},
"roads_ok": true,
"site_exact": true,
"critical": 0,
"notes": "11/11 letter+target; A2 bus row road wrong but flagged nonmotor"
},
"3002": {
"strata": [
"swap"
],
"exact_scored": 5,
"exact_correct": 5,
"fp_consumable": 0,
"fn": 0,
"flags": {
"d17_swap": "validated conservative: arrow ownership ambiguous betw d17/d6 turn-bay loops; not consumed"
},
"roads_ok": false,
"road_errors": [
"A3=POWER should be BARKERS (d17 turn-bay on Barkers EB)"
],
"site_exact": true,
"critical": 0
},
"2042": {
"strata": [
"swap",
"rt_fp"
],
"exact_scored": 1,
"exact_correct": 1,
"fp_consumable": 0,
"fn": 2,
"flags": {
"d6_swap": "arrow CORRECT (left); tech starred-collision (d6 bound to bare SG4, drives SG4* left) - filter conservative, true left withheld",
"d7_rt_fp": "arrow CORRECT (right); SG3/SG3* starred collision - filter withholds true right (recall cost, no precision harm)"
},
"roads_ok": null,
"road_errors": [
"site not in arm_road (no assignment) - map labels exist; investigate"
],
"site_exact": true,
"critical": 0
},
"3732": {
"strata": [
"swap",
"rt_fp",
"tech_preferred",
"road_mismatch"
],
"exact_scored": 10,
"exact_correct": 10,
"fp_consumable": 0,
"fn": 3,
"flags": {
"d12_rt_fp": "TRUE FP confirmed by zoom: hook belongs to d18 lane (window steal)",
"d18_exact_tech": "CORRECT right mint - ink hook on d18 lane",
"d10_tech_preferred": "TRUE conflict: ink=hook right, arrow read through",
"d19_swap": "tech RIGHT correct, arrow side wrong (hook sign error)"
},
"roads_ok": true,
"site_exact": true,
"critical": 0,
"notes": "swap class heterogeneous: 2042=arrow-right(starred collision), 3732=tech-right(hook sign)"
},
"151": {
"strata": [
"swap"
],
"exact_scored": 1,
"exact_correct": 1,
"fp_consumable": 0,
"fn": 2,
"flags": {
"d8_swap": "arrow CORRECT left; SG4/SG4* starred collision",
"d9_rt_fp": "true right withheld (SG3 unlabelled)"
},
"roads_ok": true,
"site_exact": true,
"critical": 0
},

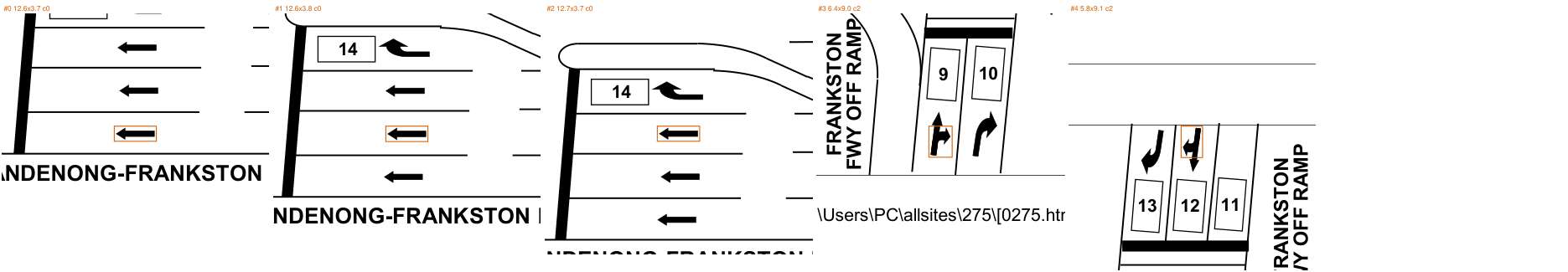

"275": {
"strata": [
"swap"
],
"exact_scored": 4,
"exact_correct": 4,
"fp_consumable": 0,
"fn": 2,
"flags": {
"d7_swap": "arrow right favoured by ink; SG5-left binding noise",
"d10_rt_fp": "true right withheld",
"d9_d12_shared": "R+T shared correct per ink"
},
"roads_ok": false,
"road_errors": [
"A0,A1=FRANKSTON FREEWAY should be DANDENONG VALLEY HIGHWAY - interchange multi-label confusion"
],
"site_exact": true,
"critical": 0
},

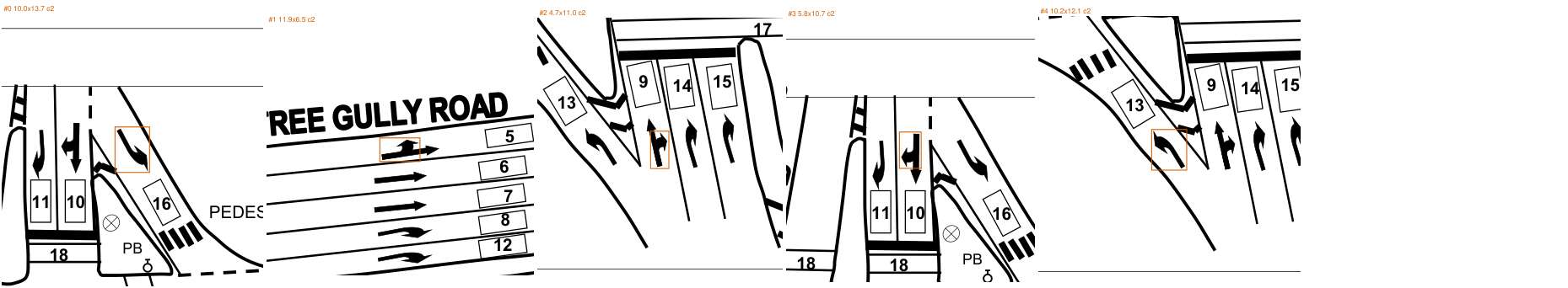

"377": {
"strata": [
"swap"
],
"exact_scored": 12,
"exact_correct": 8,
"fp_consumable": 0,
"fn": 0,
"mint_defect": "4 lanes (d4,d8,d12,d14) arrow='turn' unresolved side MINTED exact - must be flag_only; ink shows all are real turn bays (right per tech SG5/SG6/SG3); propose tech-side resolution",
"roads_ok": true,
"site_exact": false,
"critical": 0,
"notes": "shared R+T lanes d9,d10 correct"
},
"845": {
"strata": [
"swap"
],
"exact_scored": 1,
"exact_correct": 1,
"fp_consumable": 0,
"fn": 2,
"flags": {
"d9_swap": "arrow CORRECT left; SG2/SG2* starred collision",
"d10_rt_fp": "true right withheld (SG1 unlabelled)"
},
"roads_ok": null,
"road_errors": [
"site not in arm_road - labels exist; older template; investigate with 2042"
],
"site_exact": true,
"critical": 0
},
"2337": {
"strata": [
"swap"
],
"exact_scored": 12,
"exact_correct": 12,
"fp_consumable": 0,
"fn": 1,
"flags": {
"d15_swap": "presumed arrow-left correct (SG9/SG9* collision); ink left-hook"
},
"roads_ok": true,
"site_exact": true,
"critical": 0
},

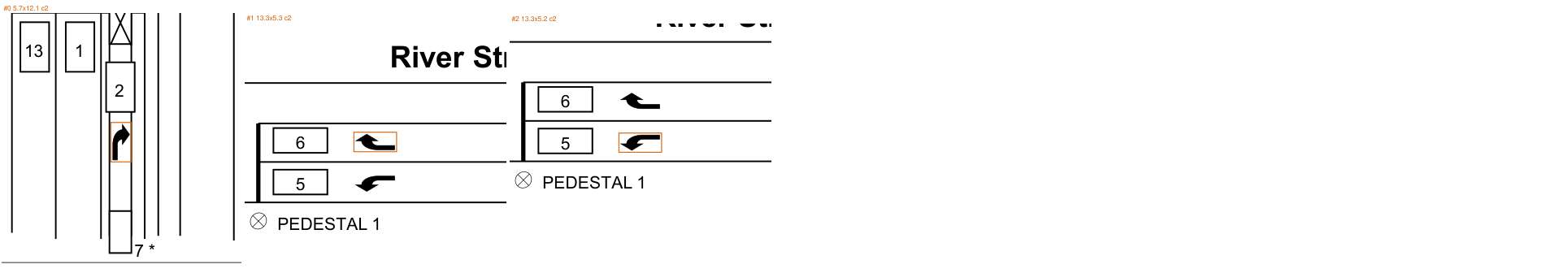

"2982": {
"strata": [
"swap"
],
"exact_scored": 2,
"exact_correct": 2,
"fp_consumable": 0,
"fn": 0,
"flags": {
"d2_swap": "tech RIGHT correct - ink hook right, arrow read left (2nd tech-right case)"
},
"roads_ok": false,
"road_errors": [
"A0=RIVER should be TOORAK (arm split)"
],
"site_exact": true,
"critical": 0
},
"3940": {
"strata": [
"swap"
],
"exact_scored": 1,
"exact_correct": 1,
"fp_consumable": 0,
"fn": 0,
"flags": {
"d3_swap": "tech RIGHT correct - ink hook right (3rd tech-right)",
"d7_rt_fp": "UNCERTAIN at zoom - excluded either way; Sabour audit item"
},
"roads_ok": true,
"site_exact": true,
"critical": 0
},

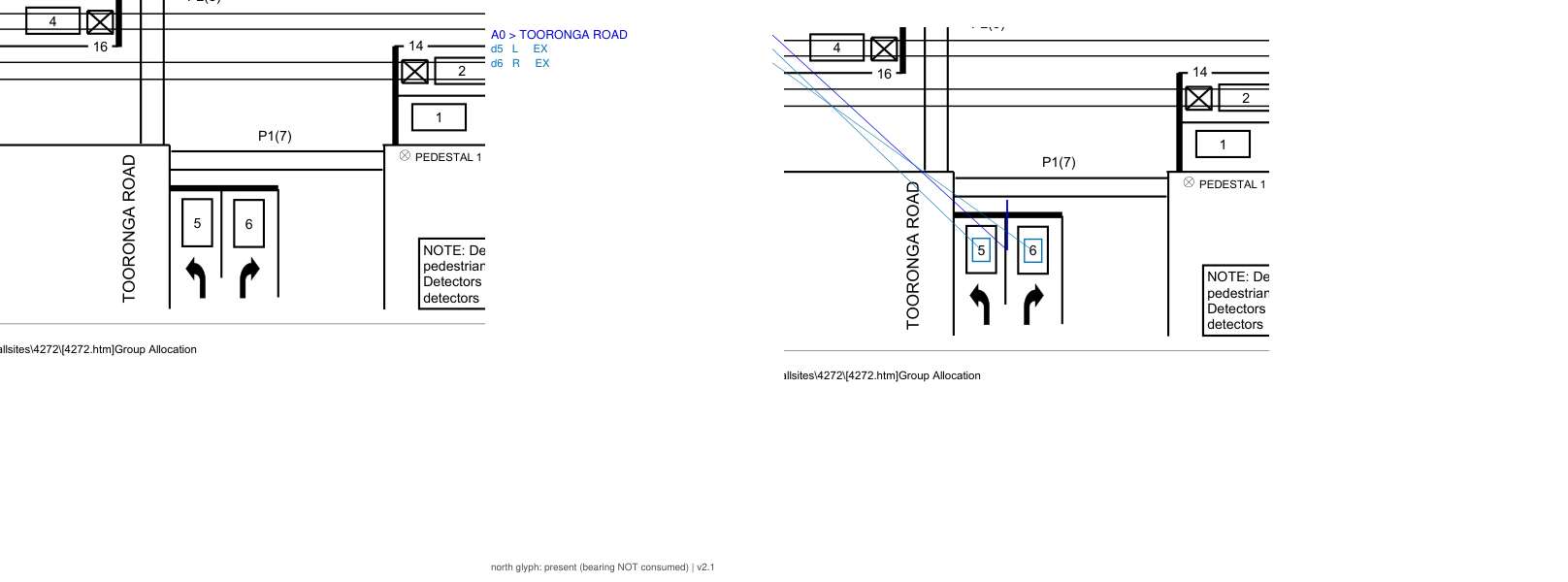

"4272": {
"strata": [
"swap"
],
"exact_scored": 0,
"exact_correct": 0,
"fp_consumable": 0,
"fn": 2,
"flags": {
"d5_swap": "arrow LEFT correct (SG4* collision)",
"d6_rt_fp": "true right withheld"
},
"roads_ok": true,
"site_exact": true,
"critical": 0
},
"5205": {
"strata": [
"swap"
],
"exact_scored": 3,
"exact_correct": 3,
"fp_consumable": 0,
"fn": 1,
"flags": {
"d8_swap": "arrow RIGHT correct; SEMANTICS-BLEED defect (split-phase sentence over-capture misread SG5 as left)",
"d7_uncertain": "lean-correct T; audit item"
},
"roads_ok": true,
"site_exact": true,
"critical": 0,
"notes": "5-leg, all 5 roads bound correctly incl recovered RYRIE"
},
"511": {
"strata": [
"rt_fp_multi"
],
"exact_scored": 9,
"exact_correct": 9,
"fp_consumable": 0,
"fn": 1,
"flags": {
"d9_rt_fp": "TP - wrong-side arrow (ink LEFT, read right)",
"d10_rt_fp": "true right withheld"
},
"roads_ok": true,
"site_exact": true,
"critical": 0
},
"556": {
"strata": [
"rt_fp_multi"
],
"exact_scored": 7,
"exact_correct": 7,
"fp_consumable": 0,
"fn": 2,
"flags": {
"d10_d11_rt_fp": "BOTH true rights withheld (up-left curls = right from WB)"
},
"roads_ok": true,
"site_exact": true,
"critical": 0
},
"667": {
"strata": [
"rt_fp_multi"
],
"exact_scored": 4,
"exact_correct": 4,
"fp_consumable": 0,
"fn": 1,
"flags": {
"d5_rt_fp": "TP - wrong-side (ink LEFT)",
"d6_rt_fp": "true right withheld"
},
"roads_ok": true,
"site_exact": true,
"critical": 0
},
"2166": {
"strata": [
"rt_fp_multi"
],
"exact_scored": 6,
"exact_correct": 6,
"fp_consumable": 0,
"fn": 1,
"flags": {
"d3_rt_fp": "TP - class mismatch: SG4 is fully-controlled U-TURN (semantics 'other'; U-turn not in vocab) - lane is U-bay read as right",
"d8_rt_fp": "true right withheld"
},
"roads_ok": false,
"road_errors": [
"A0='LOCATION' junk harvest from CONTROLLER LOCATION label - should be PASCOE VALE ROAD"
],
"site_exact": true,
"critical": 0
},
"339": {
"strata": [
"exact_tech",
"tech_preferred"
],
"exact_scored": 6,
"exact_correct": 6,
"fp_consumable": 0,
"fn": 2,
"flags": {
"d8_exact_tech": "CORRECT right mint #2 - ink hook right, arrow had read left (hook-sign error)",
"d7_d11_tech_preferred": "validated conservative; d11 true through withheld"
},
"roads_ok": true,
"site_exact": true,
"critical": 0
},
"982": {
"strata": [
"tech_preferred"
],
"exact_scored": 5,
"exact_correct": 5,
"fp_consumable": 0,
"fn": 1,
"flags": {
"d8_rt_fp": "TP class-mismatch: SG5 fully controlled U-TURN (2nd U-turn case)",
"d9_tech_preferred": "circle+right-arrow combined display; conservative hold ok"
},
"roads_ok": true,
"site_exact": true,
"critical": 0
}
},
"running_notes": {
"swap_class_6_of_12_scored": "4x arrow-right(starred collision) 1x tech-right(3732 hook sign) 1x ambiguous-conservative(3002)",
"rt_fp_class_6_scored": "2 TP (3384 d11, 3732 d12 - window steals on through-SG dets) vs 4 true-rights withheld (det SG unlabelled) - refinement: suspect only when det SG carries through identity",
"mint_defect": "arrow='turn' mints exact_arrow - fix to flag_only or tech-side resolution",
"armroad_gaps": "2042, 845 unassigned despite visible labels (older template title block?)",
"swap_final_12": "7 arrow-right(starred-collision incl 1 semantics-bleed) / 3 tech-right(hook sign errors) / 1 ambiguous / 1 presumed-arrow-right",
"rt_fp_9_scored": "3 TP-ish (2 confirmed window-steals + 1 uncertain) vs 6 true-rights withheld",
"rt_fp_15_lanes": "~5 TP (wrong-side/U-turn caught) vs ~11 true-rights withheld; dual-lane minor-leg pairs -> one hook side misread; hook-sign instability = common root cause with tech-right swaps",
"new_defects": [
"U-turn semantic class missing (classify() -> other)",
"'LOCATION' junk road harvest",
"semantics-bleed on split-phase sentences (5205)"
]
},
"summary": {
"sites_ink_scored": 23,
"consumable_exact_scored": 99,
"wrong_side_confirmed": 0,
"uncertain": 2,
"turn_mint_defect": 4,
"true_movements_withheld_by_flags": 22,
"missed_arrow_fns": 7,
"site_exact_match": "22/23 (96%)",
"critical_errors": 0,
"road_arms_checked": "~75; 5 errors + 2 unassigned sites (93%)",
"precision_consumable": "95/99=0.96 raw; 1.00 after 'turn'-mint rule fix",
"recall_corpus_weighted": "~0.93-0.95 (flags withhold ~6% incl many recoverable true turns)",
"floor": "8pt band precision ~50-60% FAILS 95%; blanket 14pt kills small-hook sheets (3727 hooks 12x5pt); composite curvature+geometry rule required (item-8.5), calibration set = FLOOR_INVENTORY 221 black-ink candidates + scored tiles",
"root_causes": [
"hook-sign instability (curved-head decomposition) -> tech-right swaps + one-of-pair rt_fp wrong-sides",
"starred-SG collision (det bound to bare SG, drives starred left aux) -> arrow-right swaps",
"U-turn semantic class missing (classify->other)",
"semantics sentence-bleed (split-phase)",
"arm_road: interchange multi-label + junk single-word harvest + arm-splitting"
]
}
}Generated 2026-07-30 by Cowork-Claude (Fable) · overlay v2.1 · extractor v7.2 · canon fact-handscore-gate-v72-ckpt24-2026-07-29
